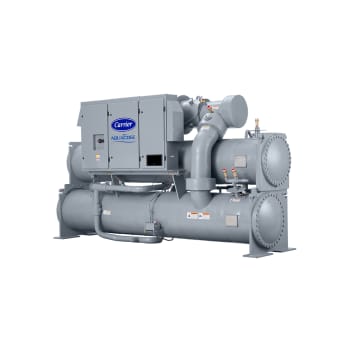

AquaEdge? High-Efficiency Variable-Speed Screw Chiller
23XRV 电竞赛事竞猜app

175 to 550 Nominal Tons (615 to 1,934 kW)电竞赛事竞猜app

The 23XRV chiller is the world’s first integrated variable-speed, water cooled, screw chiller. The 23XRV incorporates significant breakthroughs in water-cooled chiller technology to provide excellent reliability and achieve superior efficiency at true operating conditions without compromising the environment. Quality design and construction make the?AquaEdge??23XRV chillers the best choice for modern, efficient chilled water plants.

Carrier's?AquaEdge??chillers offer the best value in high-efficiency chlorine-free variable-speed screw HVAC chillers.

Water-cooled chillers within the scope of the AHRI WCCL certification program are certified in accordance with the AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org.


carrier-AHRI-550-590-551-591_WCCL
carrier-seismic-compliant
carrier-iso-9001
carrier-c-ul-us

Performance Features电竞赛事竞猜app

  • IPLV to 0.299
  • Chlorine-free HFC-134a refrigerant
  • Full Load kW/Ton to 0.53
  • Tri-rotor, positive displacement screw compressor
  • Hermetic compressor motor
  • Refrigerant-cooled, unit-mounted variable frequency drive
  • Low inrush current
  • Operation of up to 0.99 power factor
  • Flooded shell-and-tube cooler
  • Float valve
  • Superior oil management/cold condenser water operation
  • Internally and externally enhanced 0.025 in. (0.635 mm) copper tubing
  • 150 psig (1034 kPa) rated cooler and condenser
  • LCD control display
  • Microprocessor-based Product Integrated Control (PIC) III
  • Multilingual display
  • Demand limiting capability with Carrier Comfort Network? (CCN) communication link
  • Reliability Features电竞赛事竞猜app

  • ASME constructed heat exchangers
  • PED/CE construction option
  • Low voltage control circuits
  • Lowest industry refrigerant leakage rate at less than 0.1%
  • Hermetically sealed compressor motor
  • Automated controls may be tested before start-up
  • 65K AIC circuit breaker
  • Maintenance Features电竞赛事竞猜app

  • Password protected extensive service menu with built-in diagnostic capabilities, troubleshooting, and corrective action recommendations for preset alarms
  • Alarm and alert files maintain the last 25 time and date stamped messages in memory
  • Configuration data backup with non-volatile memory
  • Refrigerant filter isolation valves
  • Thermistor type temperature sensor with quick connects in each water nozzle
  • Service contract available
  • Installation Features电竞赛事竞猜app

  • Modular construction
  • Single point electrical connection
  • Can be dismantled and reassembled
  • Unit-mounted VFD with single point connection
  • Small footprint
  • Standard Warranty电竞赛事竞猜app

  • One year from start-up or 18 months from shipment
  • Refrigerant warranty 5 years from date of manufacture
  • Extended warranties available
  • Factory-Installed Options电竞赛事竞猜app

  • Enhanced tubing, .028 or .035 in. (0.711 or 0.889 mm):
  • Internally/externally enhanced copper tubing - cooler/condenser
  • Internally/externally enhanced cupronickel tubing - condenser
  • Smooth bore/externally enhanced copper tubing - cooler/condenser
  • Smooth bore/externally enhanced cupronickel tubing - condenser
  • Wall tubes, titanium, condenser, .025 or .028 in. (0.635 or 0.711 mm):
  • Internally enhanced tubes
  • Smooth bore tubes
  • Marine waterboxes (available for heat exchanger frames 3-5 only):
  • 150 psig (1034 kPa) waterbox
  • 300 psig (2068 kPa) waterbox
  • Nozzle-in-head waterbox, 300 psig (2068 kPa)
  • Hinged waterboxes
  • Flanged cooler and/or condenser waterbox nozzles
  • One, 2, or 3 pass cooler or condenser waterside construction
  • Zinc anodes
  • 100K AIC high interrupt circuit breaker with shunt trip
  • Analog voltmeter and ammeter with 3-phase selector switch
  • DataLINK? or DataPort? communication device
  • Shipped factory charged with refrigerant
  • Hot gas bypass
  • Full cold surface thermal insulation (except waterbox covers)
  • Customer factory performance testing
  • Export crating
  • Field-Installed Accessories电竞赛事竞猜app

  • BACnet? Carrier translator
  • DataLINK? or DataPort? communication device
  • LonWorks? Carrier translator
  • Sensor package
  • Separate storage tank and pumpout unit
  • Stand-alone pumpout unit
  • Soleplate package
  • Spring isolator kit
  • Refrigerant isolation valves for in-chiller refrigerant storage
  • Unit-mounted pumpout unit for storing refrigerant inside the chiller during servicing
  • Acoustical sound insulation kit
  • Shipped fully charged
  • Nominal Capacity (Tons)* Heat Exchanger Size Length with Nozzle-in-Head Waterbox Width Height
    2-Pass** 1 or 3-Pass
    ft-in mm ft-in mm ft-in mm ft-in mm
    250-550
    30 to 32
    13-8?
    4172
    14-3?
    4350
    See Unit
    Certified
    Drawings
    See Unit
    Certified
    Drawings
    35 to 37
    15-4?
    4693
    15-11?
    4870
    40 to 42
    14-3 1?8
    4347
    14-9
    4496
    45 to 47
    15-11 5?8
    4867
    16-5?
    5017
    50 to 52
    14-4?
    4382
    14-10
    4521
    55 to 57
    16-1
    4902
    16-6?
    5042

    *For job specific dimensions and weight information, please contact your Carrier Sales Representative.

    **Assumes all customer connections are on the same end of the chiller.
